Description

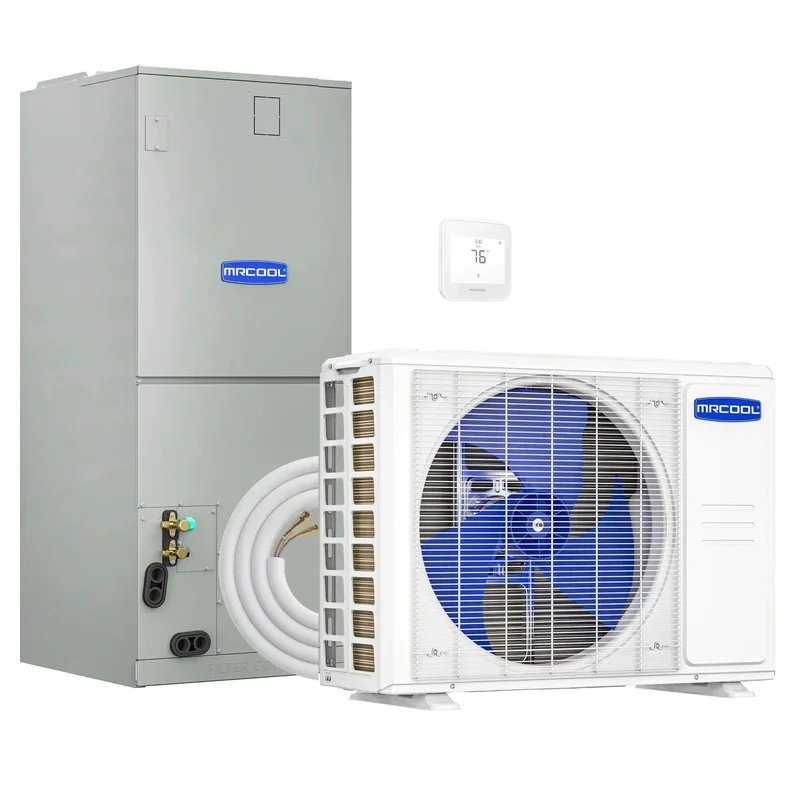

MRCOOL VersaPro 2nd Gen Central Split System with 60K BTU, 5 Ton, 15.2 SEER2, Heat Pump Condenser and Ducted Air Handler with 50 Ft. R-454B No-Vac Lineset – MVP-60-HP-230A50
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 60K BTU, 5 Ton, 15.2 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler
-
MRCOOL 50 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 60K BTU, 5 Ton, 15.2 SEER2 Central Ducted Heat Pump Condenser (MVP-60-HP-C-230A00-O)
-
5 Ton
-
SEER2 rating of 15.2 and an HSPF4 rating of 8.4
-
R-454B refrigerant
-
10-year warranty covering the compressor and parts
2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)
-
5 Ton
-
SEER2 rating of up to 16
-
R-454B refrigerant
-
10-year warranty
3. MRCOOL 50 Ft. R-454B No-Vac Lineset (NV50-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro Gen 2 – Central Hyper Heat Gen 2aVersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 38.39″ H x 38.58″ W |
| SEER2 | 15.2 |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ W |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 47″ D x 47″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 17.19 |
| Line Set Length | 49.2ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
High-Capacity Comfort – 60,000 BTU (5 Ton) system efficiently heats and cools large residential or light commercial spaces.
-
Energy-Efficient Operation – 15.2 SEER2 rating ensures reduced energy consumption without compromising performance.
-
Heat Pump Technology – Provides reliable year-round comfort for both cooling and heating needs.
-
50 Ft. R-454B No-Vac Lineset – Extended pre-charged line set simplifies installation and reduces labor time.
-
Durable & Reliable – 2nd Gen design ensures long-lasting, quiet operation and consistent climate control.
Q&A
Q: What is included in this MRCOOL VersaPro 2nd Gen system?
A: It comes with a 60,000 BTU (5 ton) heat pump condenser, ducted air handler, and a 50 ft. pre-charged R-454B No-Vac lineset for easy installation.
Q: How energy efficient is the system?
A: With a 15.2 SEER2 rating, it provides efficient cooling and heating while lowering energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser delivers year-round comfort with both heating and cooling capabilities.
Q: What makes the No-Vac lineset beneficial?
A: The pre-charged R-454B No-Vac lineset simplifies installation, eliminating the need for vacuum pumps or additional refrigerant charging.
Q: What size area can it cover?
A: Ideal for larger homes or commercial spaces up to approximately 2,500–3,000 sq. ft., depending on insulation and climate.
Q: Who should choose this system?
A: Homeowners or businesses seeking a high-capacity, energy-efficient central HVAC solution with simplified installation using a pre-charged lineset.
Maintenance Tips
-
Air Filter Care: Replace or clean filters every 1–3 months to maintain optimal airflow.
-
Outdoor Unit Maintenance: Keep condenser free of debris, leaves, and obstructions.
-
Ductwork Inspection: Seal leaks and clean ducts regularly for consistent air distribution.
-
Drain Line Maintenance: Ensure condensate lines are clear to prevent water buildup.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils for peak efficiency.
-
Lineset Check: Inspect the 50 ft. R-454B No-Vac lineset for proper installation and insulation.
-
Professional Service: Arrange yearly maintenance to maximize SEER2 efficiency and prolong system life.
