Description

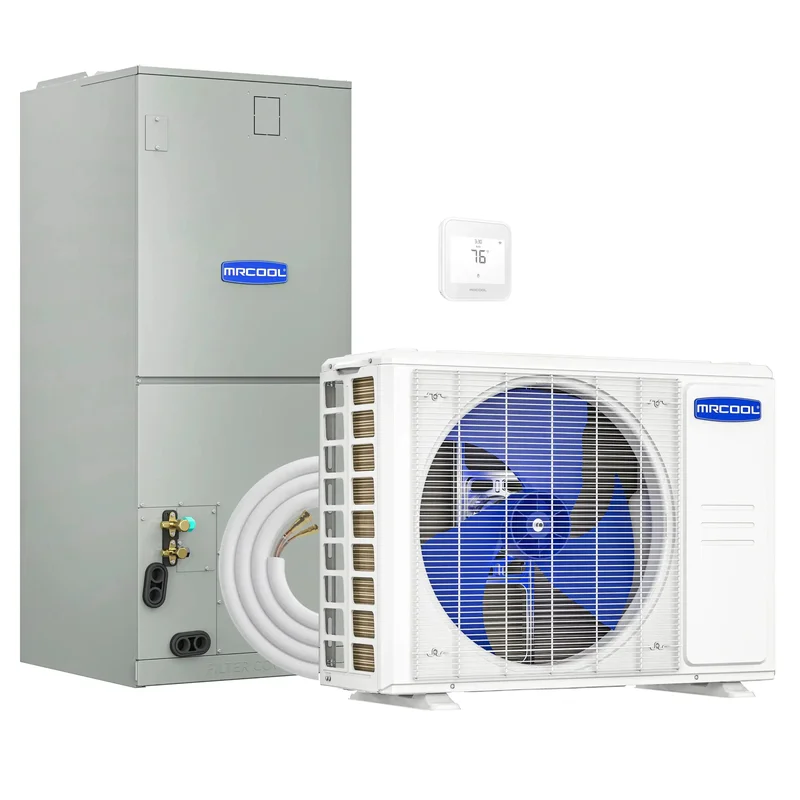

MRCOOL VersaPro 2nd Gen Central Split System with 48K BTU, 4 Ton, 16 SEER2, Heat Pump Condenser and Ducted Air Handler with 35 Ft. R-454B No-Vac Lineset – MVP-48-HP-230A35
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton, 16 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler
-
MRCOOL 35 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton, 16 SEER2 Central Ducted Heat Pump Condenser (MVP-48-HP-C-230A00-O)
-
4 Ton
-
SEER2 rating of 16 and an HSPF4 rating of 8.5
-
R-454B refrigerant
2. MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)
-
4 Ton
-
SEER2 rating of up to 16.5
-
R-454B refrigerant
3. MRCOOL 35 Ft. R-454B No-Vac Lineset (NV35-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 38.39″ H x 38.58″ W |
| SEER2 | 16 |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ W |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 41″ D x 41″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 5.73 |
| Line Set Length | 35ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Reliable Heating & Cooling – 48K BTU, 4-ton capacity efficiently serves medium to large homes.
-
Energy Efficient – 16 SEER2 rating lowers energy costs while maintaining strong performance.
-
Complete System with Extended Lineset – Heat pump condenser with ducted air handler and 35 ft. R-454B No-Vac lineset for flexible installation.
-
Durable & Dependable – Built for consistent, long-term operation.
-
Flexible Installation – Easily integrates with standard ducted HVAC systems.
Q&A
Q: What is the cooling and heating capacity of this system?
A: The MRCOOL MVP-48-HP-230A35 delivers 48,000 BTU (4 ton) capacity, ideal for medium to large homes.
Q: What efficiency rating does it support?
A: This system operates at 16 SEER2, providing energy-efficient year-round comfort.
Q: What components are included?
A: It comes with a heat pump condenser, ducted air handler, and 35 ft. R-454B No-Vac lineset, offering a complete, easy-to-install central HVAC solution.
Q: Can it provide both heating and cooling?
A: Yes, it functions as a heat pump system, delivering reliable cooling in summer and efficient heating in winter.
Q: Who is this system ideal for?
A: Ideal for homeowners and HVAC contractors seeking a high-efficiency, ducted central split system with extended No-Vac line installation.
Q: Is professional refrigerant charging required?
A: No, the No-Vac lineset allows for installation without professional evacuation or charging.
Maintenance Tips
-
Replace or clean air filters every 1–2 months to maintain optimal airflow.
-
Keep outdoor condenser clear of leaves, dirt, and debris.
-
Inspect ductwork for leaks or blockages to ensure efficient airflow.
-
Check refrigerant lines, electrical connections, and lineset integrity regularly.
-
Flush condensate drain lines to prevent clogs and water damage.
-
Schedule annual professional maintenance for peak performance and system longevity.
