Description

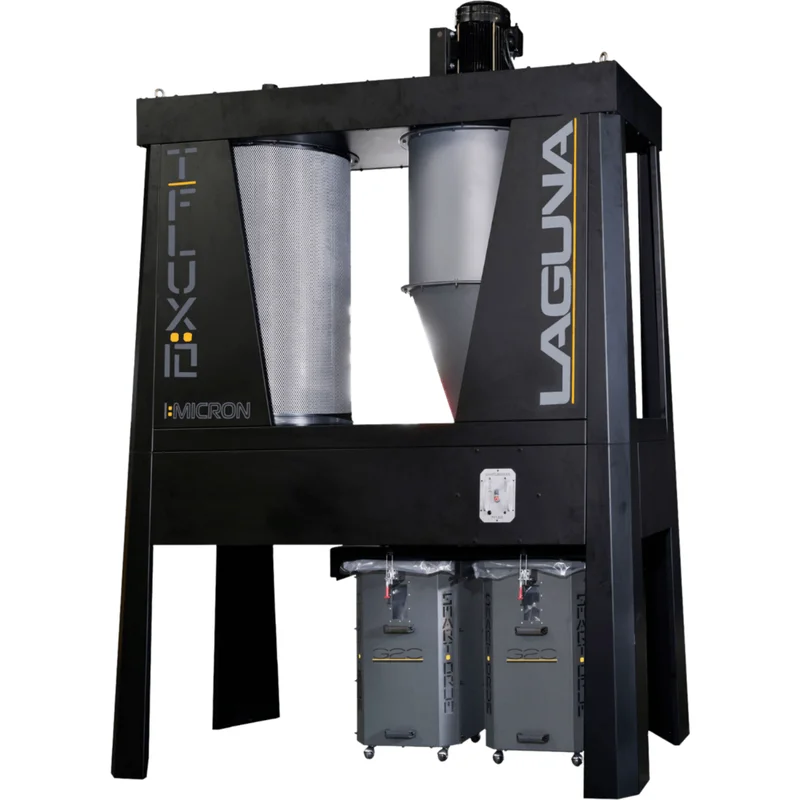

Laguna Tools Industrial Dust Collector – T|Flux: 10 Cyclone – MDCTF102203
The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop The T|Flux cyclones are equipped with a 12″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.
Features
- Motor HP: 10 HP
- 220V, 30 Amps, 3 Phase
- Recommended Breaker: 50 Amp
- 60 Hertz
- 3450 RPM
- Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
- Hand Held Remote Control: High Frequency
Additional Details
All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.
Specifications
- Shop Setting CFM*: 4030
- Inlet CFM: 6957
- Max Static Pressure (Inches of Water): 16.8″
- Impeller/Fan Size: 18½″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- How is the fan balanced? To what specs?: ISO 1940
- Inlet Diameters: 12″
- Drum Capacity: 54 ga x 2 Sets
- Octagon Drum: Low Pressure
- Drum Collection Bag (Dia x L): Plastic Bag (740 x 1300mmL)
- Canister Filter Type: Black 1 Micron
- Filtration Efficiency: 0.2-2 Micron
- MERV Rating: 12
- Canister Diameter: 750mm (29.53″)
- Canister Length: 1200mm (47.24″)
- Filter Surface Area: 19.2 m²/207 ft²
- Canister Cleaning: Auto Clean (gear motor)/Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
- Canister Filter Lower Dust Collection: Plastic Bag(740 x 600mmL)
- Canister Filter Lower Dust Collection: Plastic Bag (740 x 600mmL)
- Wheels: None
- US/CSA Approved: Yes
- Decibel Reading: 81 dB(A)(@9.8ft)
- Machine Weight: 590 kgs/1301 lbs
- Shipping Weight: 735 kgs/ 1621 lbs
- Shipping Dimensions (L x W x H): 100″ x 49″ x 86″
- Assembled Dimensions (L x W x H): 99.6″ x 48.3″ x 131.4″ (2530 x 1225 x 3337mm)
Performance
Dimensions
Manual
- T|Flux 10 Manual
What Our Experts Think
-
The Laguna Tools Industrial Dust Collector T|Flux: 10 Cyclone – MDCTF102203 provides high-capacity dust collection for industrial workshops.
-
Powered by a 10 HP motor for strong suction and consistent airflow.
-
Cyclone design separates fine dust for improved filter life and efficiency.
-
Large dual 54-gallon drums reduce downtime and increase collection capacity.
-
Built for multi-machine central dust collection in heavy-duty shops.
Q&A
Q: What is the motor power?
A: 10 HP, 220V, 3-phase.
Q: What is the airflow capacity?
A: Up to 4,030 CFM at the shop setting.
Q: How many drums does it have?
A: Two 54-gallon drums.
Q: What type of filtration is used?
A: 1-micron canister filter capturing 0.2–2 micron particles.
Q: Can it serve multiple machines?
A: Yes, designed for central shop systems.
Maintenance Tips
-
Empty drums regularly to maintain suction and airflow.
-
Inspect and clean the canister filter periodically.
-
Check ductwork connections for leaks to maintain efficiency.
-
Ensure motor and impeller are balanced for long-term performance.
-
Keep the area around the unit clear for safe operation and maintenance.
