Description

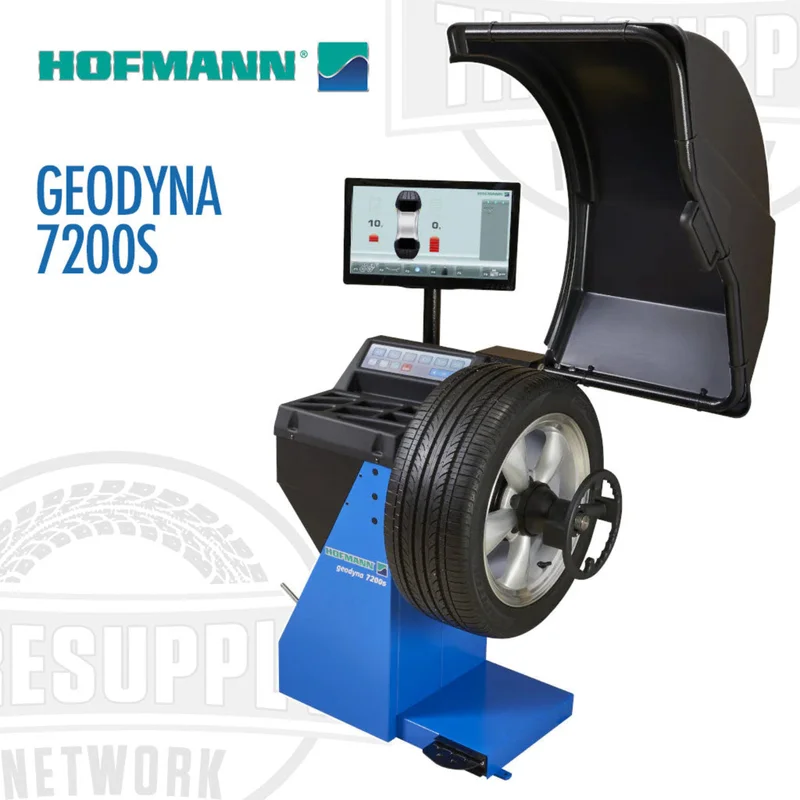

Hofmann | Geodyna 7200S Wheel Balancer with LCD Monitor (EEWB746AS)
The Geodyna 7200S High Performance Wheel Balancing System is ideal for all shops – small footprint complimented by the video display provides high-end features in a compact design. In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location. The fast spin cycle provides accurate measurement with minimum cycles for fast results.
Ideal For All Shops: Small footprint complimented by the video display provides high-end features in a compact design
Features
- In under ten Seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location
- The fast spin cycle provides accurate measurement with minimum cycles for fast results
- smartSonar simplifies parameter entry
- Patented Virtual Plain Imaging (VPI) for precise measuring
- Hidden weight mode
- Automatic braking of the wheel after measurement
- Pedal operated main shaft lock
- Tire and wheel optimization program
- Compact dimensions for installation close to a wall
EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Accessories Included
- Calibration Weight and Spacer 2”
- Four Cone Set
- Quick Nut, Plastic Protection Cup
- Rim Width Calipers
- Weight Pliers
- Set of 4 Storage Pegs
Specifications
| TECHNICAL DATA | Geodyna 7200S |
|---|---|
| Hofmann Part Number | EEWB746AS |
| Vehicles Supported | Cars, Light Trucks, SUVs, Off-Road Vehicles |
| Display Technology | Video Display |
| User Interface | Touchscreen Integrated Weight Tray |
| Measuring Speed | Less than 200 rpm |
| Balancing Accuracy | 0.035 oz / 1g |
| Angular Resolution | ±0.35° |
| Start/Stop Time – Check Spin | 4.5 seconds |
| Wheel Clamping | Quick Nut |
| Rim Diameter Range | 8″ – 32″ (203 – 813 mm) |
| Offset Range | 1″ – 20″ |
| Rim Width Range | 1″ – 20″ |
| Data Entry – Diameter & Offset | Semi-Automatic, Gauge Arm |
| Data Entry – Wheel Width | Automatic, Non-Contact smartSonar |
| Rim Diameter Range | 8″ – 25″ |
| Rim Width Range | 3″ – 15″ |
| smartSonar Rim Gauge | 13″ – 26″ |
| SAPE Working Range | 1.3″ – 10.9″ (33 – 278 mm) |
| Maximum Wheel Diameter | 42″ (1067 mm) |
| Maximum Wheel Width | 3″ – 20″ (76.2 – 508 mm) |
| Maximum Wheel Weight | 154 lbs (70 kg) |
| Diameter of Shaft | 40 mm |
| Length of Shaft | 8.86″ (225 mm) |
| Main Shaft Lock | Mechanical |
| Wheel Braking After Measurements | Automatic |
| Power Requirements | 115 V, 1 Ph, 50/60 Hz, 5 Amp |
| Dimensions (Wheel Guard Open) | 40″ L x 31″ W x 72″ H |
| Net Weight | 220 lbs (100 kg) |
| Cycle Start | Automatic After Closing Wheel Guard |
| Balancing Program Selection | Semi-Automatic, easyALU |
| Spoke Position Detection | Manual |
| Multiple User Capability | No |
| Stop In Position | No |
| Rim Lighting | No |
| Split Weight | Yes |
| Minimization | Yes |
| Optimization | Yes |
| Job Counter | Yes |
| Network | No |
What Our Experts Think
The Hofmann Geodyna 7200S Wheel Balancer is designed for precision, efficiency, and ease of use in professional automotive settings.
- LCD Monitor – Provides clear visuals for accurate balancing.
- Semi-Automatic Data Entry – Reduces manual input errors and speeds up workflow.
- User-Friendly Interface – Simplifies operation for technicians of all skill levels.
- Durable & Reliable – Engineered for long-term use in high-volume shops.
- High-Precision Balancing – Minimizes vibration for a smoother ride.
Q&A
Q: What are the key features of the Hofmann Geodyna 7200S Wheel Balancer?
A: The Geodyna 7200S features an easy-to-read LCD monitor, semi-automatic data entry, and precise balancing for passenger car and light truck wheels. It offers fast cycle times, intuitive operation, and laser-guided weight placement for accurate results.
Q: How does the semi-automatic data entry improve efficiency?
A: The system automatically detects wheel diameter and distance, reducing manual input time and ensuring precise measurements.
Q: What types of wheels can this balancer accommodate?
A: It supports wheels with rim diameters from 12” to 30” and rim widths from 1” to 20”.
Q: Does this balancer include automatic weight placement?
A: Yes, it features laser-guided weight positioning for accurate and efficient balancing.
Q: What diagnostic functions are included?
A: The Geodyna 7200S detects wheel imbalance and assists in proper weight placement to optimize vehicle performance and minimize vibrations.
Q: Is the LCD monitor easy to use?
A: Yes, the clear LCD display provides a user-friendly interface for simple and efficient operation.
Q: What are the power requirements for this balancer?
A: It operates on a 230V power supply.
Q: Is this wheel balancer suitable for professional shops?
A: Yes, its fast cycle times, precision balancing, and user-friendly design make it ideal for automotive service centers.
Q: Does this product come with a warranty?
A: Yes, the Hofmann Geodyna 7200S includes a manufacturer’s warranty for reliability and peace of mind.
Maintenance Tips
- Keep LCD Monitor & Sensors Clean – Wipe the screen and sensors with a microfiber cloth for clear visibility and accurate data entry.
- Perform Regular Calibration – Follow manufacturer instructions to maintain precise balancing results.
- Inspect & Tighten Components – Check the spindle, mounting cones, and clamps for wear or looseness and tighten as needed.
- Check Power & Connections – Ensure all cables and connectors are secure and free from damage.
- Clean the Control Panel & Keypad – Gently wipe down the controls with a dry cloth to prevent dust accumulation.
- Lubricate Moving Parts – Keep rotating and sliding components properly lubricated to ensure smooth operation.
- Update Software – Check Hofmann’s website for firmware updates to optimize functionality.
- Maintain a Clean Workspace – Keep the machine and surrounding area free from dirt, grease, and debris for optimal performance.
