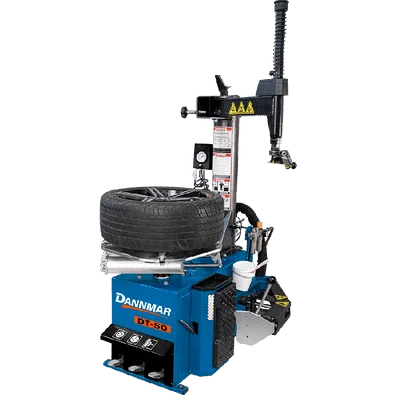

Dannmar Dt-50 12″-26″ Rim Capacity Tire Changer – 5140158
The Dannmar DT-50 swing-arm tire changer is affordable and incorporates controls mounted upfront that are logically arranged for both speed and ease-of-use. The tire changer is designed to handle the needs of on-the-go shops with its sturdy body, rigid hexagonal vertical shaft, and hardened-steel horizontal outrigger support arm that eliminates flex during tire service operations. This also reduces the risk of damaging allow wheels.
Features
-
Swing arm
-
High torque electric turntable
-
Alloy steel mount and demount head
-
Wheel clamping method 4 clamps internal rim clamping
-
Capacity 12”– 26” (305 mm – 660 mm)
-
Maintenance-free gearbox
-
Aluminum pneumatic cylinders
-
High pressure polyurethane pneumatic tubing
-
Inflation gauge with Integrated air dump valve
-
Tool tray/storage
-
Enhanced bead breaker blade
-
Oiler/lubricator
-
Air regulator
-
Inflation restraint
-
Forged-steel foot pedals
Specifications
| Motor | 110/220-VAC, 50-60 Hz, 1-Ph |
|---|---|
| Drive System Type | Electric / Air |
| Tower Design | Rigid Fixed / Swing Arm |
| Power Assist Tower | Not Equipped (See DT-50A) |
| Bead Seating System | Turbo Blast / Bead Seating |
| Air Requirement | 110-175 PSI (8-10 BAR) |
| Wheel Clamping Method | 4 Clamps – Internal / External |
| Table Clamping System | Dual Pneumatic Cylinders |
| Bead Breaking System | Pneumatic Blade |
| Tower Design | Fixed |
| Internal Rim Clamping Capacity | 14” – 26” (356 mm – 660 mm) |
| External Rim Clamping Capacity | 12” – 22” (305 mm – 559 mm) |
| Turntable Rim Width Capacity | 3” – 15” (76 mm – 381 mm) |
| Bead Breaker Rim Width Capacity | 3” – 14” (76 mm – 356 mm) |
| Maximum Tire Diameter | 47” (1,194 mm) |
| Noise | <70 dB |
